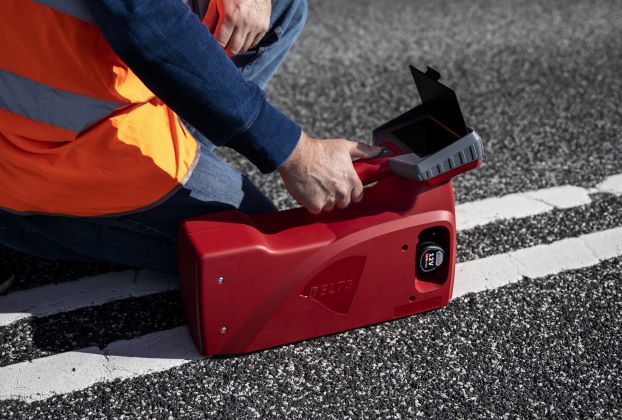

Delta LTL3000 Retroreflectometer

LTL3000 is part of a new generation of DELTA retroreflectometer
instruments for measuring retroreflection of road markings. The
instrument is based on the latest technological developments
and with modern design and materials. LTL3000 is, like all other
DELTA instruments, very easy to calibrate and operate, we like to
say “very user-friendly”. And the instrument is of course robust
and long lasting, On top of this small in size (420 x 300 x 150
mm / 16.5 x 11.8 x 5.9 inch) and light in weight (4.7 kg / 10.4 lbs.).

LTL3000 is primarily intended for users who need an instrument for
less demanding measurement programs, who want an instrument
which is easy to transport and who do not need many features to
support the measurements.

The instrument complies with international standards like: EN 1436,
ASTM E 1710, ASTM E 2177, ASTM E 2302, ASTM E 2367.

General features:

• Measurement time less than 1 sec for both RL and Qd
• Measures RL on profiled markings up to 15 mm / 0.6 inch
• Memory 8 GB
• Multi-lingual
• Easy-readable color touch LED display with 3 buttons
• Long-life illumination system
• USB memory stick interface
• Power supply, standard Bosch professional battery
• Stray light compensated
• Single handed operation, user-friendly
• Shows and stores day and time
• Facility for entering and storing road ID and user ID
• Data presentation in MS Excel format

Optional features:

• RL and Qd for dry & wet markings (RL is standard delivery, Qd is optional)
• GNSS positioning
• Nighttime color (x,y) for RL measurements

For current pricing please get a hold of us using our details located on the "contact us' page.
